Container Dimensions

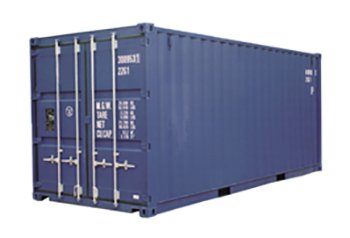

20′ Dry Cargo Container – **Please note container sizes may vary depending on the container**

20-Dry-Cargo-Container

Specifications 8’6″ Standard
Inside Cubic Capacity 32.8cu.m (1,158 cu.ft)
Cargo Capacity 21,640 kg (47,716 Ibs.)
Tare weight 2,360 kg (5,204 Ibs.)
Outside Inside
Length 6.05m (19.88 ft) 5.85m (19.35 ft)
Width 2.44m (8.00 ft) 2.32m (7.71 ft)
Height 2.59m (8.50 ft) 2.36m (7.80 ft)
Door Size
Height 2.28m (7.48 ft)
Width 2.32m (7.64 ft)

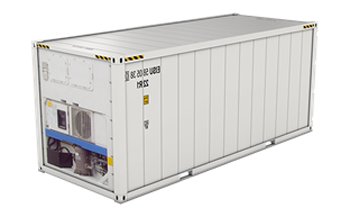

20′ Reefer Containers

Reefer-Container

Full Freezer or Chiller Combi – Freezer Combi – Chiller
Specifications: Temp:
Weights: -28 degree to +30 degree TEMP: -22 degree TEMP: +2 degree
Max. Gross Weight 27,000kg (59,520 lbs.) 27,000kg (59,520 lbs.) 27,000kg (59,520 lbs.)
Net Tare Weight 3,160kg (6960 lbs.) 3,160kg (6960 lbs.) 3,160kg (6960 lbs.)
Payload 23,840kg (52560 lbs.) 23,840kg (52560 lbs.) 23,840kg (52560 lbs.)
Dimensions: Inside:
Length 5.46m (17.91 ft) 2.70m (8.86 ft) 2.52m (8.27 ft)
Width 2.25m (7.38 ft) 2.25m (7.38 ft) 2.25m (7.38 ft)
Height 2.16m (7.09 ft) 2.16m (7.09 ft) 2.16m (7.09 ft)
Door Opening:
Width 2.23m (7.32 ft) 2.23m (7.32 ft) 2.23m (7.32 ft)
Height 2.22m (7.28 ft) 2.22m (7.28 ft) 2.22m (7.28 ft)
Volumes:
Capacity 28cu.m (988 cu.ft) 13cu.m (459 cu.ft) 12cu.m (423 cu.ft)

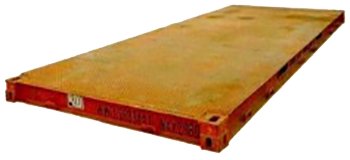

20′ and 40′ Bolster Platforms

Bolster-Platform

Specifications: 20′ 40′
Cargo Capacity 23,460kg (51,729 lbs.) 26,260kg (57,903 lbs.)
Tare Weight 1,940kg (4,277 lbs.) 4,220kg (9,305 Ibs.)
Length (overall) 6.06m (19.88 ft) 12.19m (40.00 ft)
Width 2.44m (8.00 ft) 2.44m (8.00 ft)
Height 0.23m (0.66 ft) 0.65m (2.13 ft)

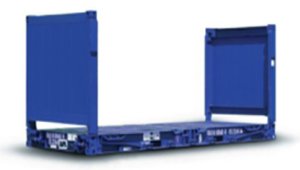

20′ and 40′ Flattrack

Flattrack

Specifications: 20′ 40′
Cargo Capacity approx. 20,015kg (44,133 lbs.) approx. 30,476kg (67,200 lbs.)
Tare Weight approx. 3.100kg (6,835 lbs.) approx. 5,646kg (12,450 lbs.)
Dimensions: Outside: Inside: Outside: Inside:
Length 6.06m (19.88 ft) 5.85m (19.19 ft) 12.19m (40.00 ft) 11.62m (38.30 ft)
Width 2.44m (8.00 ft) 2.23m (7.31 ft) 2.44m (8.00 ft) 2.12m (6.95 ft)
Height 2.59m (8.50 ft) 2.15m (7.04 ft) 2.44m (8.00 ft) 1.96m (6.43 ft)
or 2.17m (7.12 ft) or 2.59m (8.50 ft)

20′ Open Top Container

Open-Top-Containers

Specifications:
Inside Cubic Capacity 32.6cu.m (1,151 cu.ft)
Cargo Capacity 21,700kg (47,839 lbs.)
Tare Weight 2,300kg (5,071 lbs.)
Dimensions: Outside: Inside:
Length 6.06m (19.88 ft) 5.88m (19.29 ft)
Width 2.44m (8.00 ft) 2.32m (7.61 ft)
Height 2.59m (8.50 ft) 2.31m (7.58 ft)
Door Size:
Height 2.28m (7.48 ft)
Width 2.33m (7.64 ft)

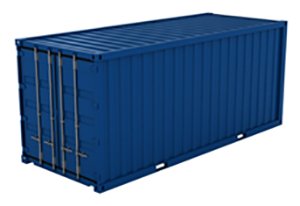

20′ Hi-Cube Container

Hi-Top-Container

Specifications:
Inside Cubic Capacity 37.4cu.m (1,320 cu.ft)
Cargo Capacity 30,480kg (67,197 lbs.)
Tare Weight 2,340kg (5,159 lbs.)
Dimensions: Outside: Inside:
Length 6.05m (19.85 ft) 5.85m (19.62 ft)
Width 2.44m (8.00 ft) 2.32m (7.61 ft)
Height 2.90m (9.51 ft) 2.70m (8.86 ft)
Door Size:
Height 2.58m (8.46 ft)
Width 2.34m (7.68 ft)
